PV-ezRack®/SolarRoof™ Pro 2.0 (EU)
SolarRoof™
Pro 2.0
As one of the best solar roof companies, Clenergy PV-ezrack SolarRoof™ Pro 2.0 is a type of solar roof mounting system that boasts a wide range of adjustments for three positions and ETA-certified screws. The solar roof mount system offers quick and flexible roof mounting solutions for most residential pitched tile roofs.
Innovative Mounting Design for Maximum Efficiency
The Clenergy PV-ezRack® SolarRoof™ Pro 2.0 is a roof mounting system suitable for most residential pitched tile roofs.
Advanced Click-in technology of Toroda Rail:Clenergy’s solar roof racking systems feature advanced click-in technology with the Toroda Rail. Made from high-strength aluminium, the rail offers light weight, corrosion resistance, and one-tool installation, and is currently recognised as one of the most user-friendly rail technologies available.

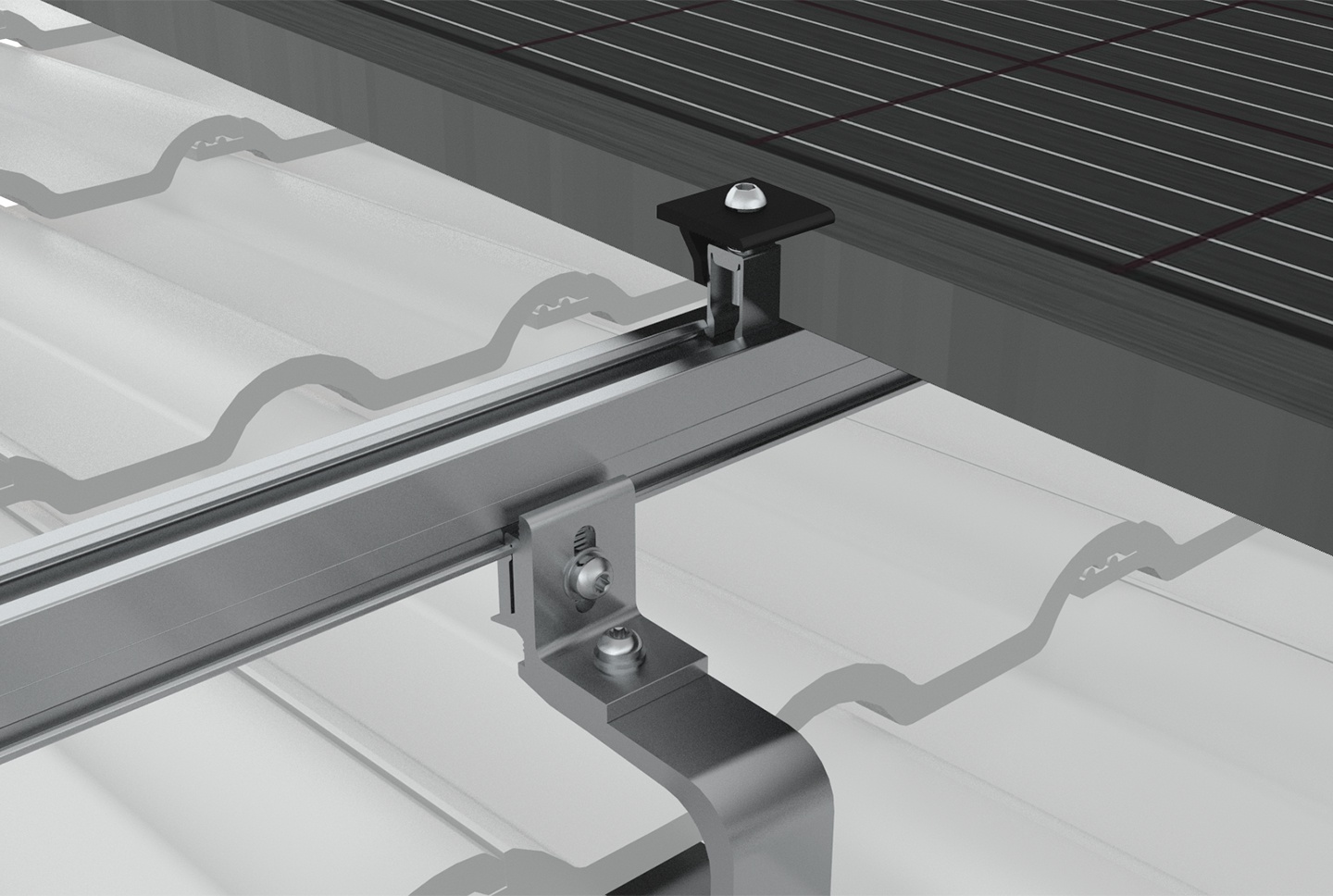

Stable Mounting Interface: For pitched roof solar mounting, Clenergy designs different roof hooks for various roof types. The roof hook is fixed to the roof rafters and then connects to the rail. This connection method will not damage the roof tiles and is compatible with various tile shapes.
Hassle-free and Time-saving Solution
- High-quality hooks, rails, and ETA-certified screws ensure the safety of roof mounting system.
- One tool installation for the whole roof hook system.
- The same kit and SKU of Clenergy solar racking system are compatible with both landscape and portrait Layouts.
Product Details |
Customised |
|
Product Details |
Key Benefits
Wide adjustment range
The Clenergy solar power roof systems boast an innovative adjustable tile hook, offering a wide range of adjustments for three positions, different tile thicknesses, various wooden structures, and building structure tolerance. The wide adjustment range allows faster and easier onsite installation of solar panel roof mounting. Only one tool is required to install the entire roof mounting system, owing to the unified of the connection point design.
Flexible orientation

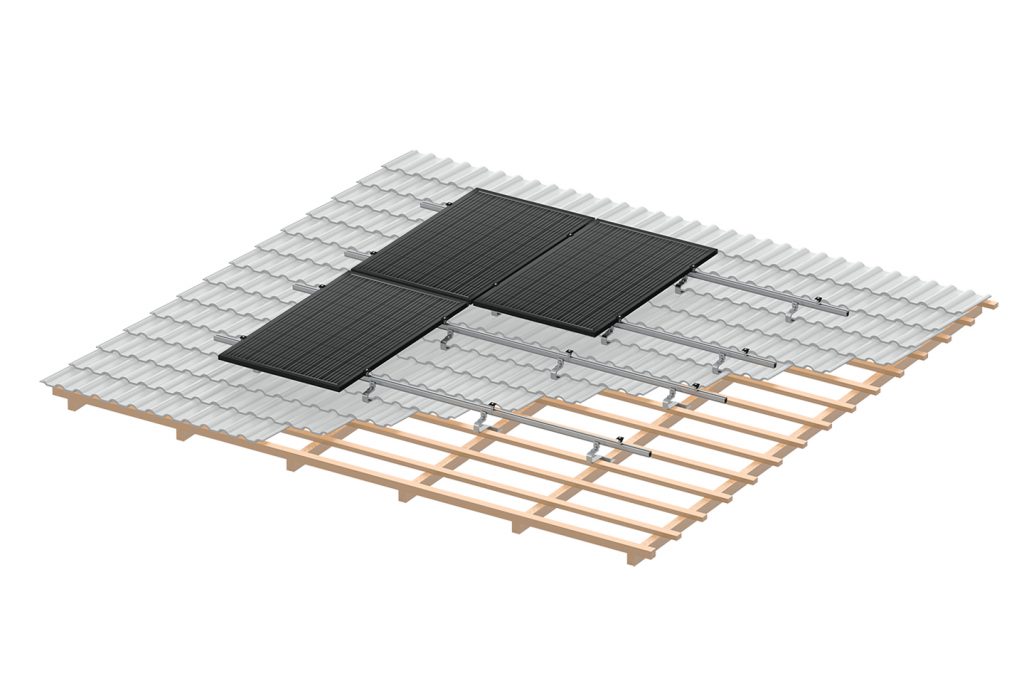

The same kit and components are required for both landscape and portrait layouts on residential roofs simply by rotating the L feet on top of the roof hook. This feature of Clenergy PV roof mounting systems avoids two layers of rail requirement and makes the PV-layout arrangement for irregular roofs more flexible.
ETA-certified screws
The SolarRoof Pro 2.0 is a hassle-free solar panel roof mounting system featuring stable and high-strength materials. High-strength hooks and rails, and ETA-certified screws ensure that house owners need not worry about tile fracturing or the safety of mounting system safety on windy or snowy days.
Videos
Unboxing SolarRoof Pro 2.0 by PVezRack
How to install SolarRoof Pro 2.0 by PVezRack
Install Clenergy PV-ezRack SolarRoof Pro 2.0
Solar Mounting Training by Clenergy at the Enpal Akademie in Berlin 🇩🇪
SolarRoof Pro 2.0 by PVezRack at Intersolar Munich 2023 - Germany
SolarRoof Pro 2.0 Plain Tile
SolarRoof Pro 2.0 Beaver Tile
SolarRoof Pro 2.0 Alu Adjustable Tile
Downloads
Search result: documents found
Components
End Clamp
EC-M28-46/L50
End Clamp (full black)
EC-M28-46/L50/BA
End Clamp (half black)
EC-M28-46/L50/BA
Inter Clamp
IC-M28-46/L50
Inter Clamp (full black)
IC-M28-46/L50/BA
Inter Clamp (half black)
IC-M28-46/L50/BA

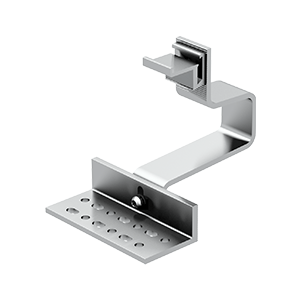

ALU Adjustable hook
ER-I-SRPII/TO/02A

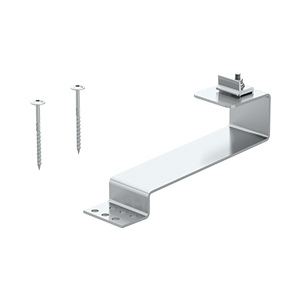

Beaver tile hook
ER-I-SRPII/TO/13M

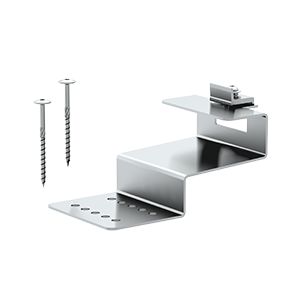

Plain tile hook
ER-I-SRPII/TO/12M
Klip-lok
ER-I-34
Klip-lok (black anodised)
ER-I-34/BA
Mycro Rail
ER-R-MC/M/380
U Support
ER-S-U/M/120
Splice
ER-SP-SRPII/TO/40
Toroda Rail
ER-R-SRPII/TO/40
Toroda Rail (black anodised)
ER-R-SRPII/TO/40/BA

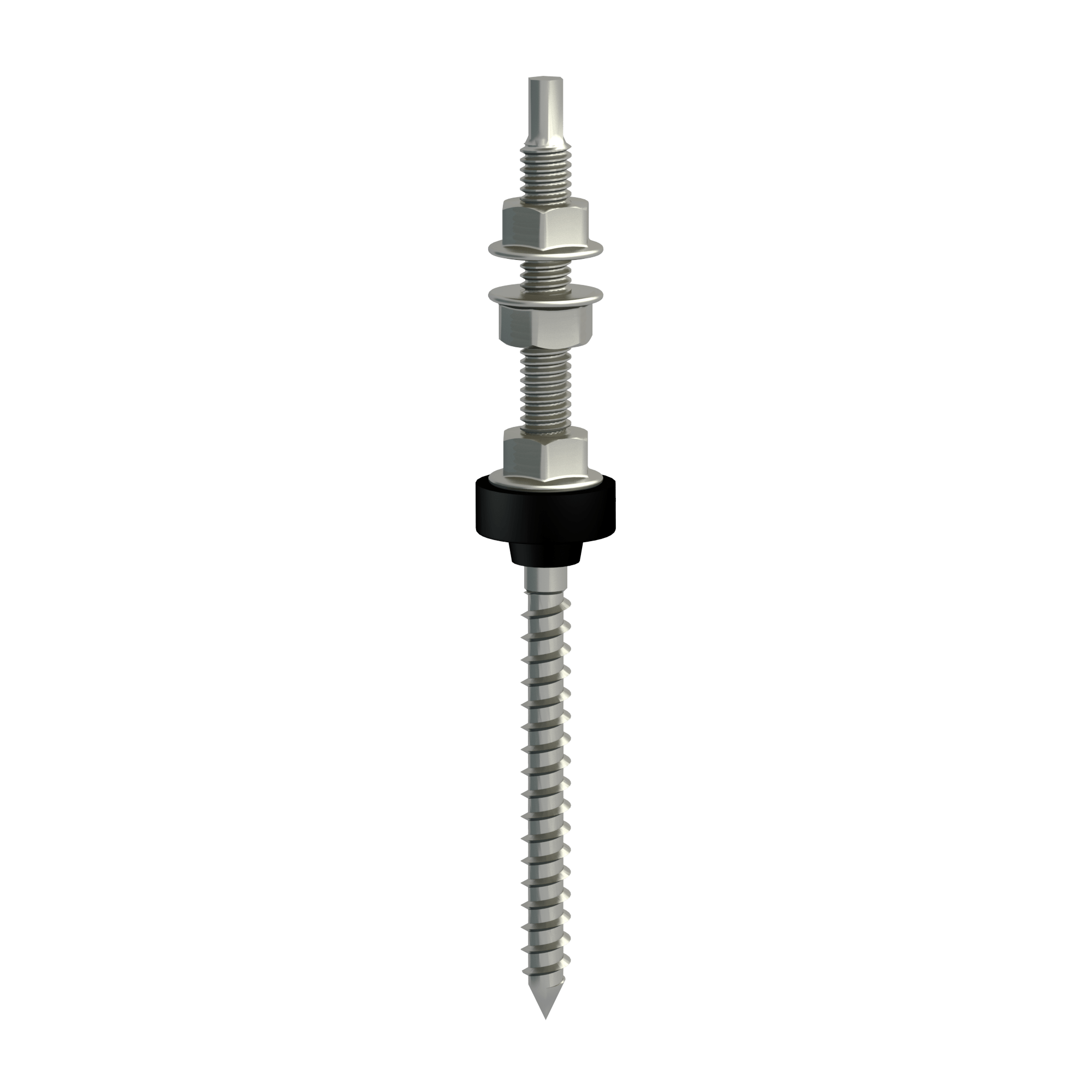

Hanger Bolt
ER-HB-10/XXA or ER-HB-12/XXA
Accessories
Cable Clip
EZ-CC-PV/2
Cable Clip
EZ-CC-PV/4
Cable Clip (Landscape)
EZ-CC-PV/2/L
Cable Clip (Landscape)
EZ-CC-PV/4/L
Grounding Clip
GC-DT
Grounding Lug
EZ-GL-TO/S
Grounding Lug
EZ-GL-TO
Rail Cap
EZ-CAP-TO/40
Rail Cap (black)
EZ-CAP-TO/40/BA
Frequently Asked Questions
What is a roof mounting system for solar panels?
What types of Solar Roof Mounting Systems does Clenergy offer?
Why choose Clenergy solar mounting systems?
