PV-ezRack®/Solar Mounting System/SolarRoof Series/Pitched Metal Roof/SolarRoof™ Non-Penetrative
SolarRoof™
Non-penetrative

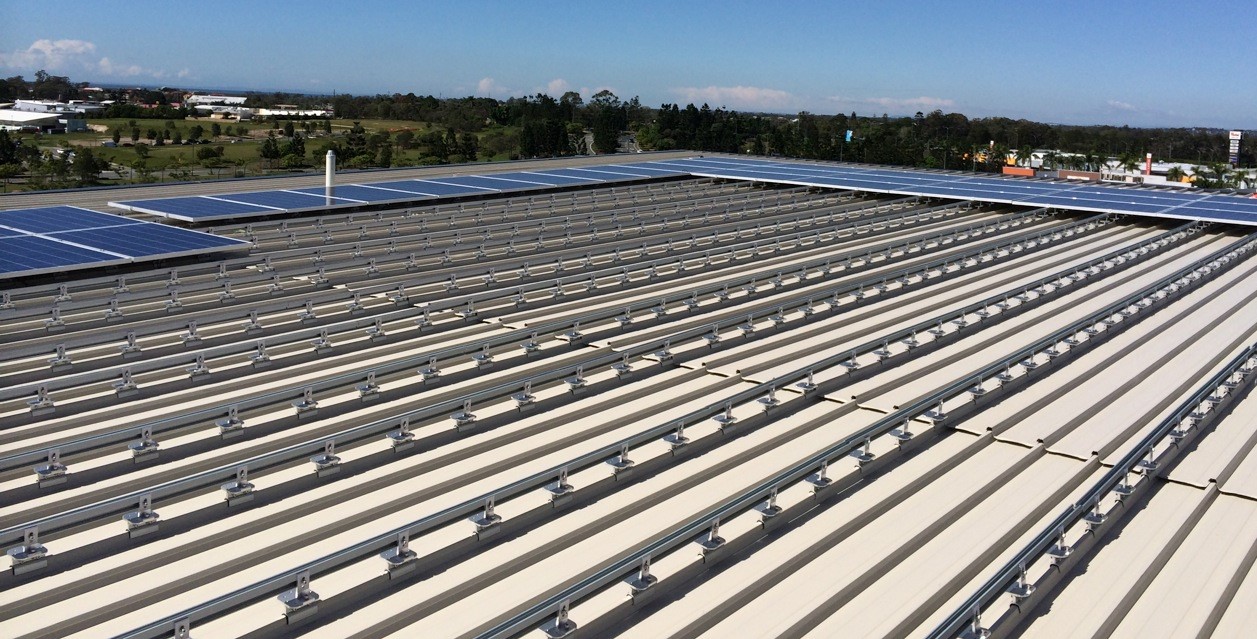

Reliable and Robust Non Penetrating Solar Roof Mount Solutions Especially Designed for Concealed-fix Roof Claddings (Klip-lok, Longline). The non penetrative PV mounting system features adjustable L-feet — raising rails for better ventilation and fitting platform layout without compromising the roof.
Features
The Clenergy PV-ezRack® SolarRoof™ is designed for residential and commercial applications. This non-penetrating solar roof system allows installation on pitched and flat roofs.
- The mounting system withstands wind speeds up to 88 metres per second through its robust design and high-quality materials.
- Corrosion resistance is achieved through anodised structural grade aluminium and stainless steel components.
- Innovative Z-module technology enables a surprisingly quick and easy installation.
Built To Last
Non Penetrating Solar Roof Mount System
【L-feet Design】 The non penetrative solar roof system stands out for its robust L-feet design. It raises the rails for improved airflow and cooling, enabling the solar roof system to achieve greater long-term power output. It also ensures secure rail placement across different platform structures, minimizing overhang and enhancing stability.

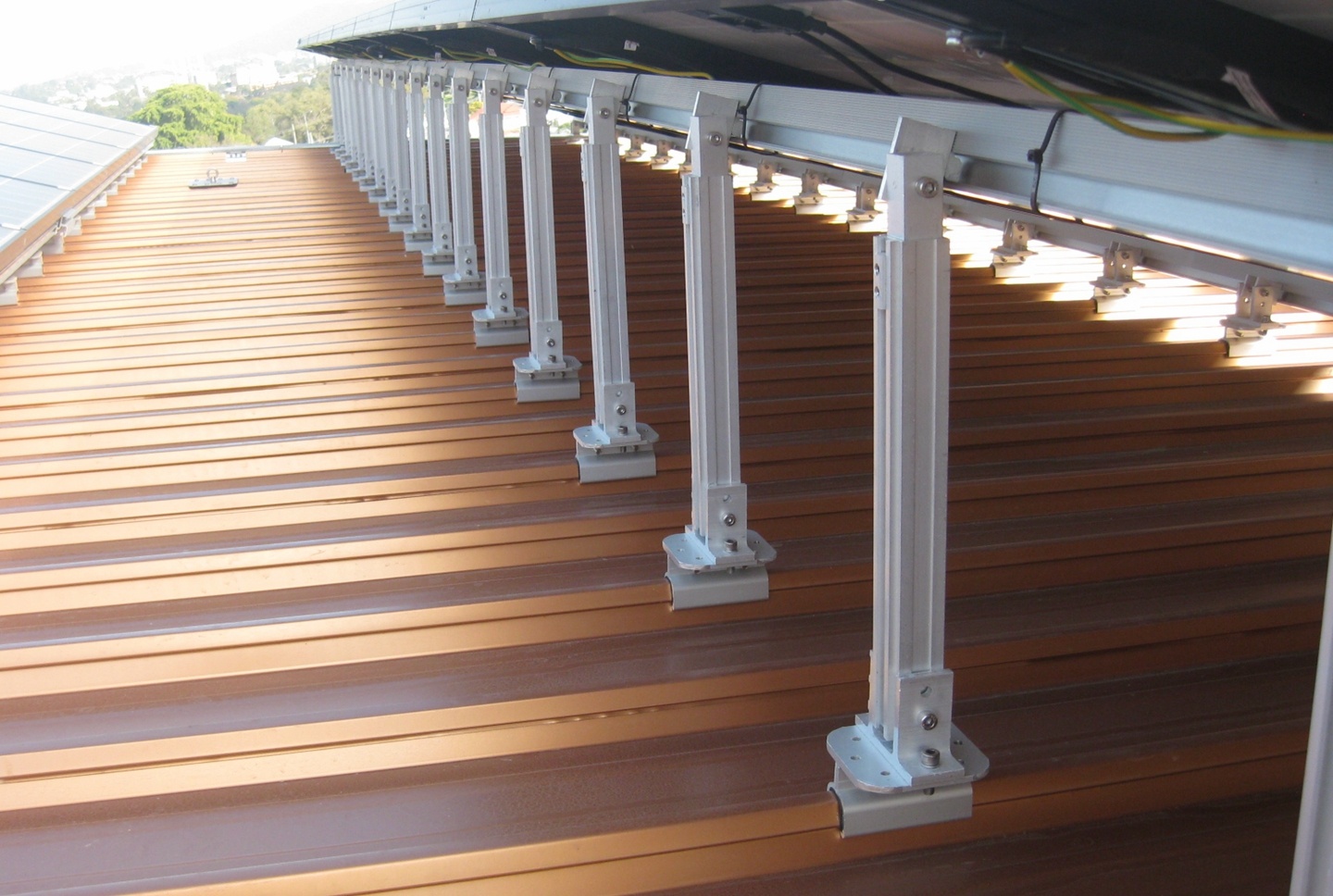

【Zero Roof Penetration】The fully compliant clip-on clamps eliminate the need for roof penetration on concealed type roofs, and the optional adjustable tilt legs provide flexibility in application.
Product Details |
Customised |
|
Product Details |
Key Benefits
Easy Installation
Our non penetrative solar roof is equipped with a versatile rail, Z-module, and splice kit, which eliminates the need for onsite cutting, making it a safe and cost-effective PV mounting system.
Great Compatibility
Designed as a universal PV mounting system, SolarRoof offers a wide range of non penetrating solar roof mount solutions, which are compatible with most major framed and frameless PV modules on the market.
Versatile Application
With a full range of roof hooks and brackets, PV-ezRack SolarRoof is suitable for most roofing types, including pitched tile roofs, metal roofs, concrete roofs, and even slate roofs. In addition, the non penetrating solar panel mount system offers adjustable tilt legs and flexible rails, allowing installers to easily adjust the angle and layout to match different roof slopes and site conditions.
High Quality
All Clenergy PV-ezRack solar roof systems, including non penetrative solar roof are manufactured under strict quality control in accordance with ISO 9001 for both materials and finished products, ensuring optimum strength and long life for your installation.
Videos
Supply Partners Review Clenergy Kliplok Clamps for Non Penetrative Roofs
Install DFendr Solar Skirt
Clenergy PVezRack SolarRoof Installation Guide for Klip lok roof with ECO Rail
Downloads
Search result: documents found
Components
End Clamp
ER-EC-ST
Inter Clamp
ER-IC-ST
Universal Clamp
C-U/30/46-G
Universal Clamp
C-U/30/46
End Clamp, Dual 35 or 40mm
ER-EC-DU35/40
End Clamp, Dual 40 or 46mm
ER-EC-DU40/46
ECO Rail
ER-R-ECO
Splice for ECO Rail
ER-SP-ECO

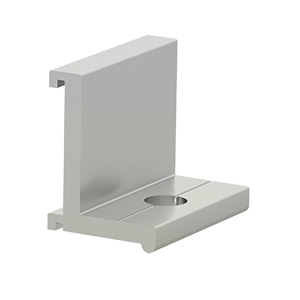

Cross Connector Clamp of ECO-Rail
CRC-R/ECO
Tin Interface
ER-I-05

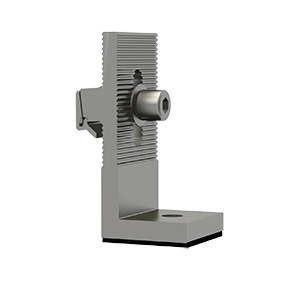

Tin Interface with Click Module
ER-I-05/CM

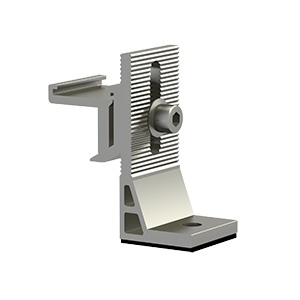

Tin Interface A with ezClick Connection
ER-I-05A/EZC/ECO

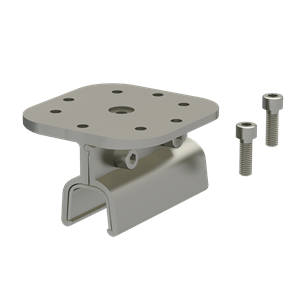

Klip-lok Interface 700
ER-I-09
Klip-lok Interface 700, Black Anodized
ER-I-09/BA

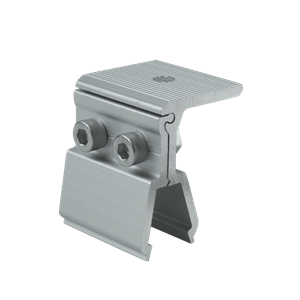

Hidden Klip-lok Roof Hook 26
ER-I-13

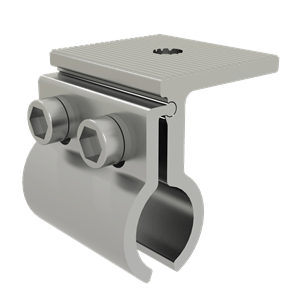

Klip-lok Interface for Standing Seam 22
ER-I-16

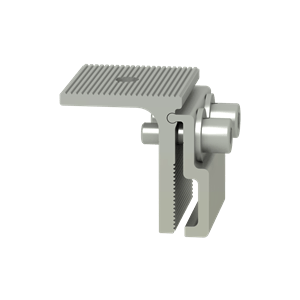

Interface for Standing Seam 8 Klip-lok Roofs
ER-I-17

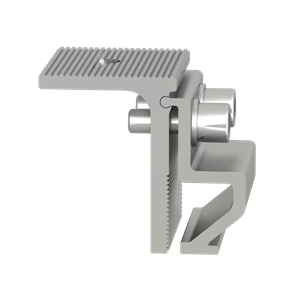

Interface for Standing Seam 20 Klip-lok Roofs
ER-I-18

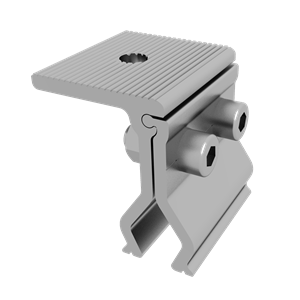

Klip-lok Interface for Angularity 18A (L50)
ER-I-20

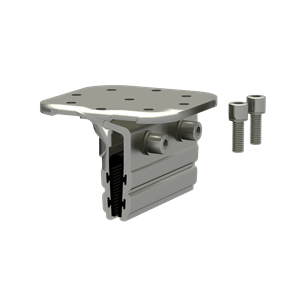

Klip-lok Interface for Longline 305
ER-I-29
Klip-lok Interface for Longline 305, Black Anodized
ER-I-29/BA

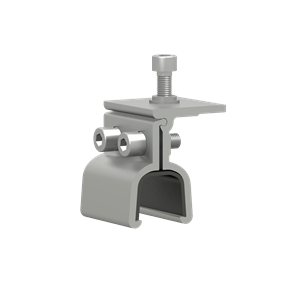

Klip-lok Interface 400-700HS, L50*45, with Threaded Hole and M8 Bolts
ER-I-31/45/M8

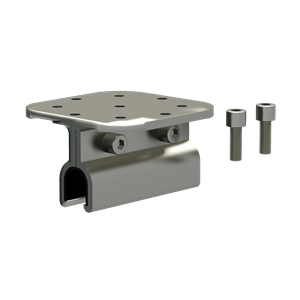

Klip-lok Interface 406
ER-I-32
Klip-lok Interface 406, Black Anodized
ER-I-32/BA

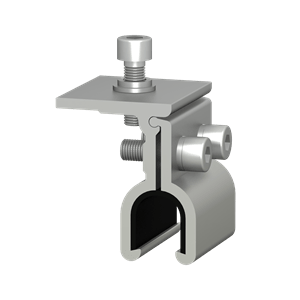

Klip-lok Interface 406 with U-opening, L50*45, with Threaded Hole and M8 Bolts
ER-I-32/45/M8

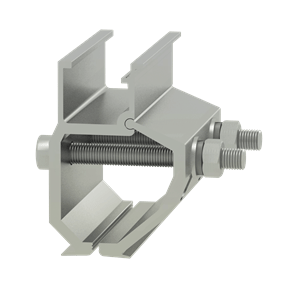

Universal Klip-lok Interface with Z-Module Channel
ER-I-33

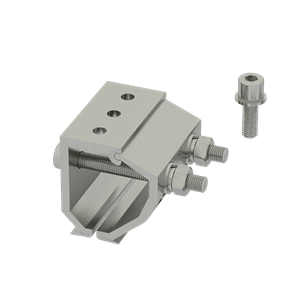

Universal Klip-lok Interface
ER-I-34
Universal Klip-lok Interface, Black Anodized
ER-I-34/BA
Universal Klip-lok Interface pre-assembly with Tin Interface A with ezClick module
ER-I-34/05A/EZC
Universal Klip-lok Interface pre-assembly with Tin Interface A with ezClick module, Black Anodized
ER-I-34/05A/EZC/BA

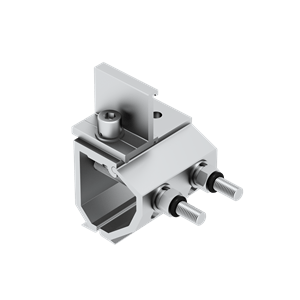

Universal Klip-lok Interface pre-assembly with Cross Connector Clamp
ER-I-34/CRC
Universal Klip-lok Interface pre-assembly with Cross Connector Clamp, Black Anodized
ER-I-34/CRC/BA
Fixed Tilt Legs, preassembly
ER-TL-5/PS, ER-TL-10/PS
L-Profile 5 Degree Tilt Legs with Climaseal 5 (C5) Screws
ER-TL-5/L/C5/
L-Profile 5 Degree Tilt Legs with Climaseal 5 (C5) Screws, Black Anodized
ER-TL-5/L/C5/BA
Accessories
Grounding Clip
EZ-GC-ST
Grounding Lug with Copper Pipe
EZ-GL-ST
Grounding Lug with U-Shape Copper Channel
EZ-GL-ST/UC
Universal Cable Clip for PV Panels for Holding 2 Cables
EZ-CC-PV/2
Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape
EZ-CC-PV/2/L
Universal Cable Clip for PV Panels for Holding 4 Cables
EZ-CC-PV/4
Universal Cable Clip for PV Panels for Holding 4 cables, Landscape
EZ-CC-PV/4/L
Universal Cable Clip for PV Panels for Holding 6 Cables
EZ-CC-R/ST/6
Module Assembly with Bolt and Washer
Z-Module, M8x25 (5/16”x 1”) A2 70
Washer 8.4 (5/16”) DIN 9021 A2
Lock Washer 8 (5/16”) A2
ER-Z-STBW
Diamond Module M8 with Hexagon Socket Bolt M8x20
ER-DM-MT8
Solar Roof Isolator Shade, 280*158*114mm with Z-Module and bolt, non-assembly
IS-SR265/111
Solar Roof Isolator Shade, 280*158*114mm with Z-Module and bolt, non-assembly, Black Anodized
IS-SR265/111/B
Angle Bracket for Isolator Shade, 260 mm Length
AB-SR/IS/260
Angle Bracket for Isolator Shade, 260 mm Length, Black Anodized
AB-SR/IS/260B
MT-Rail Cable Tray, 40 40 2560 mm
EZ-CT-40/40/2560
Cover for MT-Rail Cable Tray, length 855mm
CO-MT/855
Side Channel Cover for Cutter-Rail, length 380 mm
SCO-ECO/380
DFendr - Solar Skirt for PV Panels
EZ-SS-PV
DFendr - Solar Skirt Clip for PV Panels
EZ-SC-PV
Frequently Asked Questions
What is a non-penetrative solar roof system, and how does it work?
What kind of roofs are best suited for non-penetrative solar mounting systems?
How does the Clenergy mounting system handle high wind or snow loads?
